Helite Airbag Lanyard

Name: Helite Airbag Lanyard
Brand: Helite
SKU: HELAIRLYARD
Price: 78 USD
Availability: InStock

As low as: $78.00

SKU: HELAIRLYARD

Product Details

The Lanyard connects the airbag to the saddle strap and comes with each airbag.

The equestrian airbag lanyard connects directly to the piston with a key-ball that will activate the CO2 cartridge in case of a fall. Each airbag comes with the lanyard installed. Simply attach the carabiner to the saddle strap to install it. (see tab above)

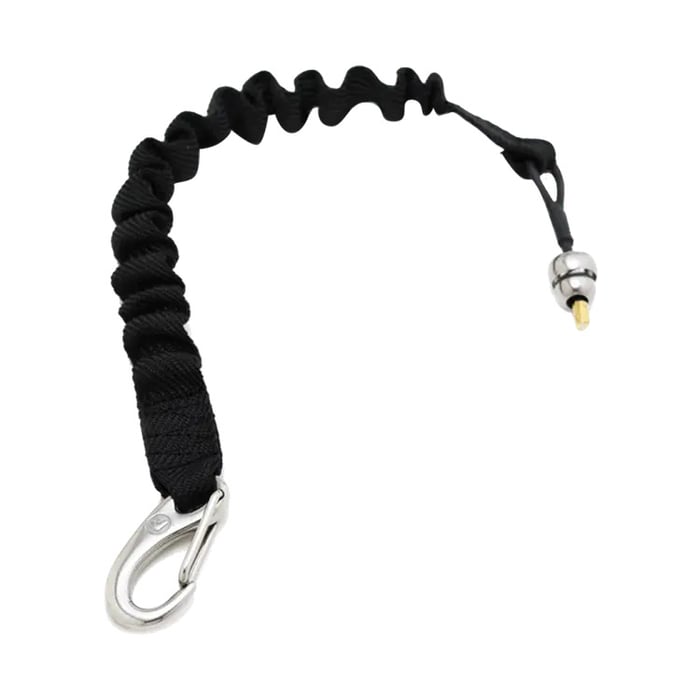

On the lanyard is a carabiner and a key-ball located at each end. The key-ball is positioned on the firing pin and keeps the mechanical system energized. When you are on your horse, the carabiner must hook onto the metal ring of the saddle strap.

CAUTION, we recommend that you ONLY attach the carabiner to the saddle strap. Attaching to any other part of the saddle may not ensure inflation of the airbag in case of a fall. Additionally, make sure the lanyard cannot wrap around any part of the saddle.

Specifications

SKU	HELAIRLYARD
MPN	HELAIRLYARD
Brand	Helite
Color	White

Do not have reviews yet

Safety Standards

Safety Vest Certification Organizations

BETA

BETA maintains the EN equestrian standards

EN 13158 is a body protector standard with three primary components

Specifies the area of the body that must be covered
Tests impact performance both on flat ground and fence rails
Measures security of attachment to the wearer

Impact testing is conducted at ambient temperatures, and an optional 30°C impact test is also available.

Body protector manufacturers conforming to the BETA standards are required to annually re-test their approved products to ensure ongoing consistency in the quality of manufacture and of the shock-absorbing foams used in the construction of their garments.

SEI (ASTM)

SEI maintains ASTM standards

ASTM F1937 is a standard that specifies:

Requirements for the body protector assembly
The extent and form of the protective material used
The attachments
The dimension, sizing and body coverage provided

Testing procedures include a shock attenuation test, a penetration and deformation test, an impact sites test, a padding separation test, and a closure test.

These tests are done in four conditions: ambient temperature, low temperature, high temperature, and water immersion.

ASTM F2681 is a standard for body protectors that covers the minimum performance criteria and outlines test methods for body protectors that will be used specifically for horse racing.

Levels of Protection

In 1995, BETA Level 1, 2, and 3 safety standards were introduced, with 1 being the lowest and 3 being the highest level of protection offered.

There are three levels of protection to cater for different riding activities. The latest European safety standard is EN 13158 and BETA 2018.

No body protector can prevent serious injury in certain accidents, but you can improve your chances of staying safe by choosing the highest safety standard.

Level 1 (green label)

Body protectors certified to Level 1 provide a lower level of impact protection that is only considered appropriate for racing where weight is of over-riding importance and there are no requirements in place for a great level of protection.

Level 2 (orange label)

Body protectors certified to Level 2 provide a lower than normal level of protection that is only considered appropriate for use in low risk situations.

These DO NOT include riding on roads or other hard surfaces, riding over jumps, riding young or excitable horses or riding while inexperienced. This level is now used by many jockeys while racing.

Level 3 (blue label)

Body protectors certified to Level 3 provide a level of protection that is considered appropriate for normal horse riding, competitors and for working with horses.

Protectors to this level should prevent minor bruising that would have produced stiffness and pain, reduce soft tissue injuries and bruising, and prevent a limited number of rib fractures.

This level is required by many exercise riders for race horses.

Level 3 – Carriage driving (blue label)

Body protectors designed to meet the needs of horse drivers. Navigators are best wearing a standard level 3. It does not provide adequate coverage of the back for those riding horses or those working with them.
